Featheredge Roof Pergolas

Choosing the Right Featheredge Pergola

Apex, Lean-To or 4 Pitch?

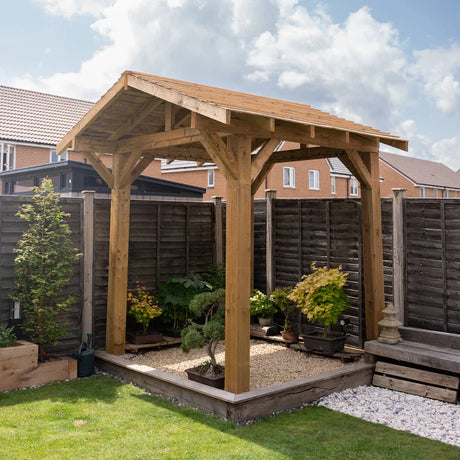

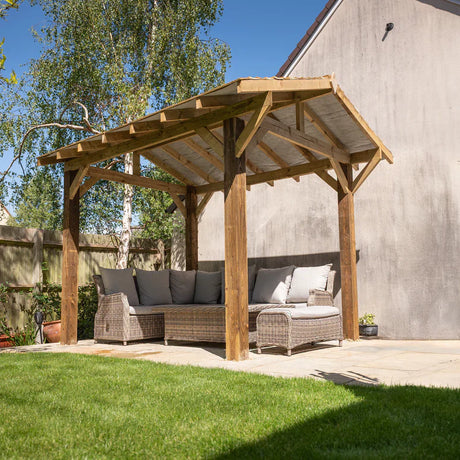

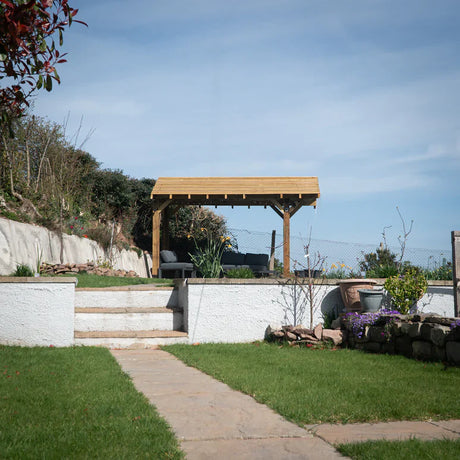

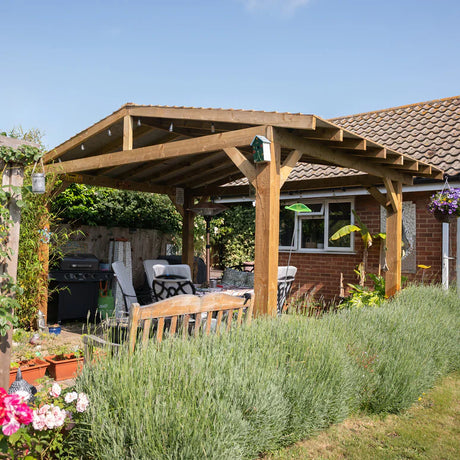

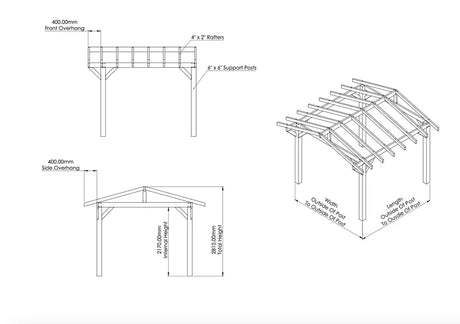

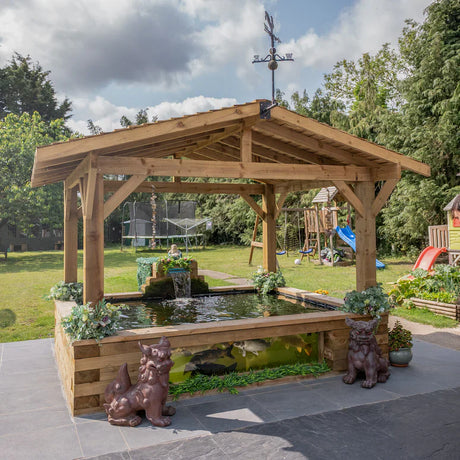

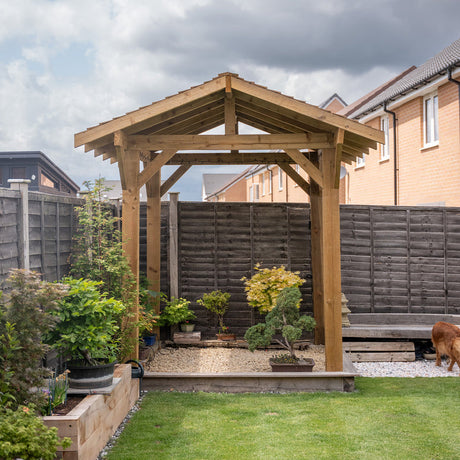

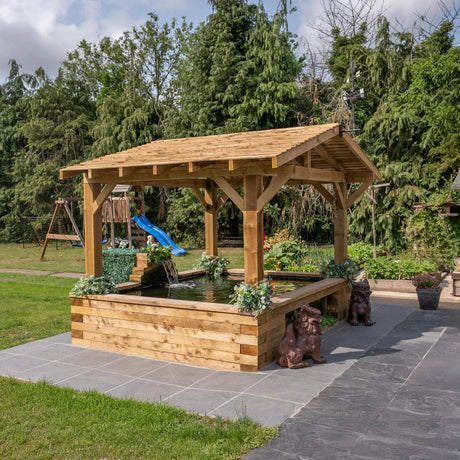

An apex roof pergola suits open garden spaces and creates height through the centre. That extra ridge height doesn’t just look good, it improves airflow and gives the structure a lighter feel overhead. In practical terms, the dual pitch encourages steady water runoff on both sides, which is useful in heavy rain. Apex designs also work well over long dining tables or outdoor sofas because the higher middle section stops the space feeling boxed in.

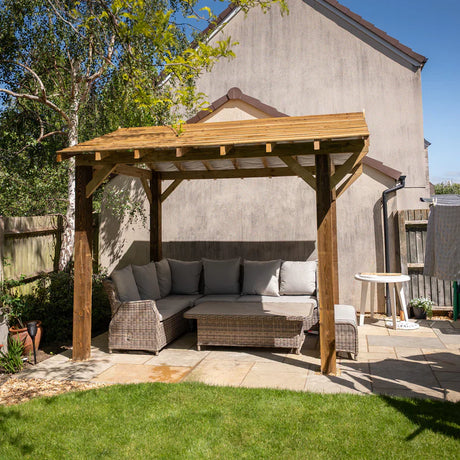

A lean-to pergola is usually fixed to an external wall, so it feels like a natural extension of the house. The rear sits higher, then slopes away to the front. This keeps the overall profile lower and often helps with planning constraints, especially near boundaries. Lean-to featheredge roof pergolas are popular outside bifold or patio doors because they reduce glare and light rain without blocking too much daylight from the room behind. They also make good use of narrower patios where a freestanding structure might feel intrusive.

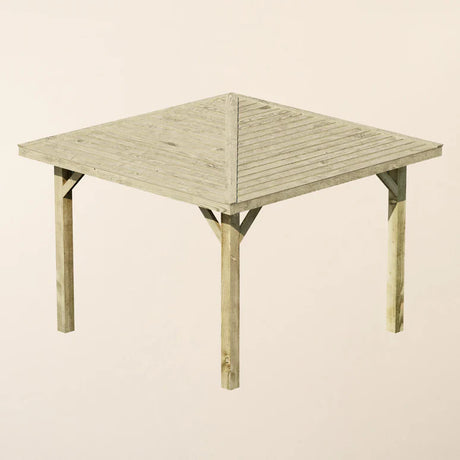

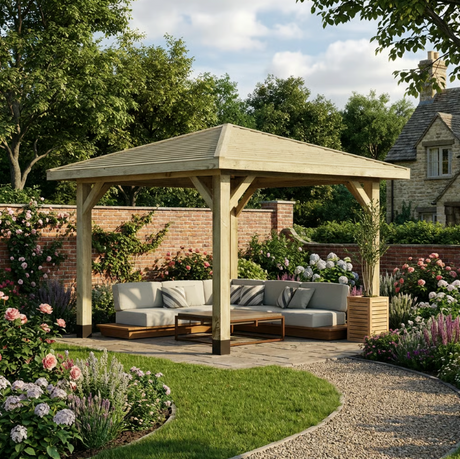

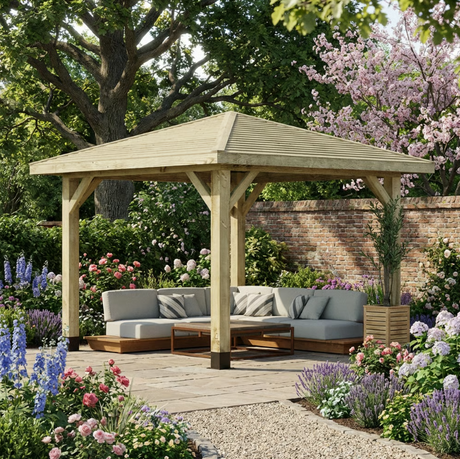

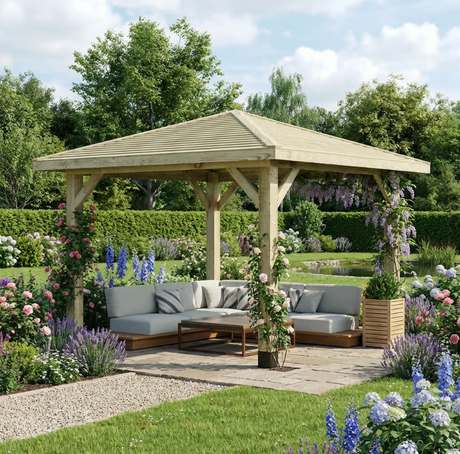

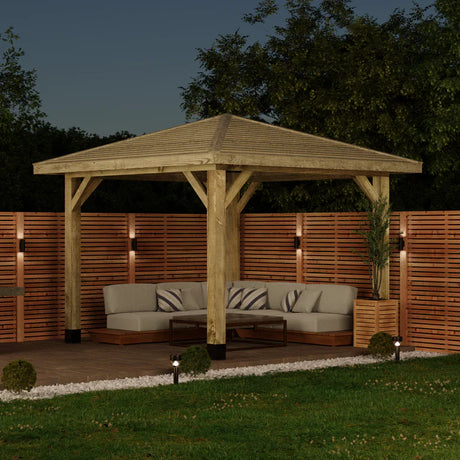

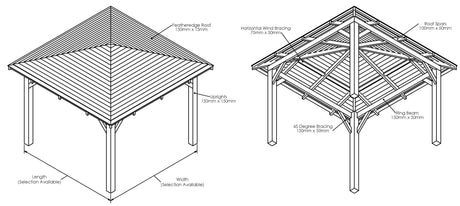

A 4 pitch gazebo, sometimes called a hip or pyramid roof, slopes down on all four sides. This design distributes water evenly in every direction and tends to perform well in exposed gardens where wind direction changes. Visually, it feels balanced and symmetrical, which suits central lawn positions or more formal layouts. Because all sides slope down, it can also create a slightly more enclosed, sheltered atmosphere underneath, ideal for hot tubs or dedicated seating zones.

Standard Sizes or Made to Measure

Common footprints range from compact 3m x 3m seating areas to larger 4m and 5m spans designed for proper entertaining. A 3m x 3m featheredge pergola is usually enough for a corner sofa set or a four- to six-seat dining table. Step up to 3m x 4m or 4m x 4m and you’ve got room for a full outdoor dining layout with circulation space around it, which makes a big difference day to day.

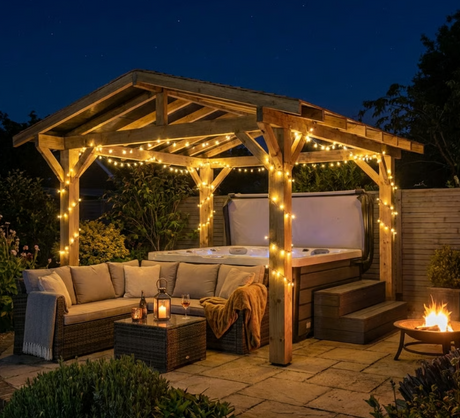

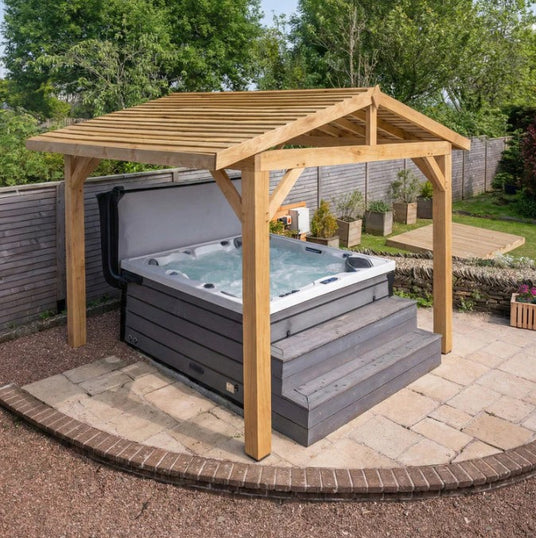

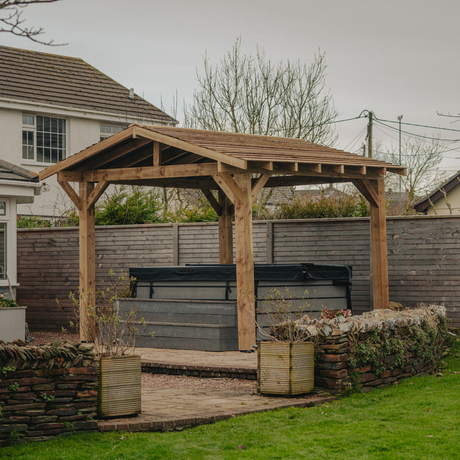

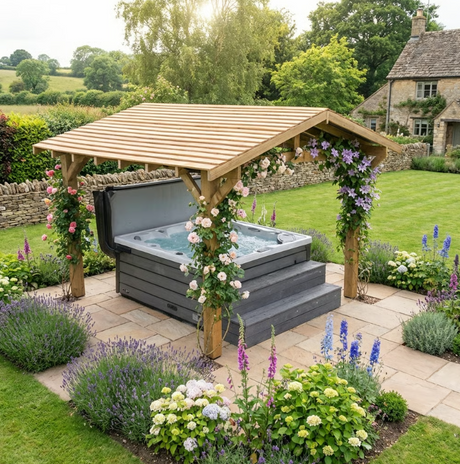

If you’re covering a hot tub, outdoor kitchen or long rectangular dining table, measure more than just the item itself. You need clearance for steps, lid lifters, chair pull-back space and comfortable walkways. As a rough guide, allow at least 600–800mm around fixed features so the area doesn’t feel cramped. Overhang matters too. A modest roof overhang can improve rain protection, stopping water dripping straight onto the edge of your seating area.

Height is just as important as width and depth. Think about finished floor level, especially if installing onto decking, and check how the overall roof height fits within your garden layout and any boundary restrictions.

Made to measure options are useful when standard sizes waste space or clash with existing paving lines. Slight adjustments in width or projection can help you align posts neatly with slab joints, avoid drains or maximise a narrow patio. In tighter gardens, that flexibility often makes the difference between a pergola that feels squeezed in and one that looks properly integrated.

Why Go With a Featheredge Roof?

How Featheredge Boards Work

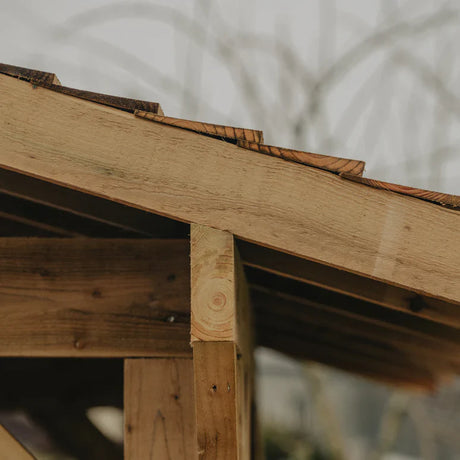

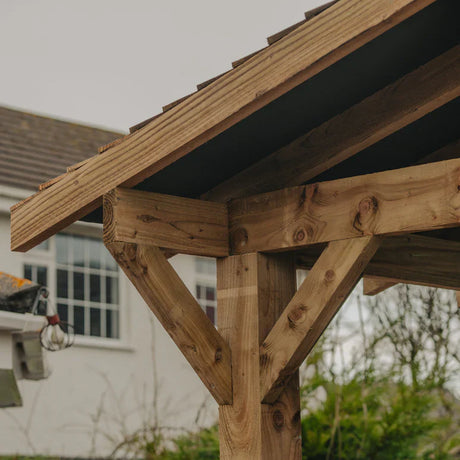

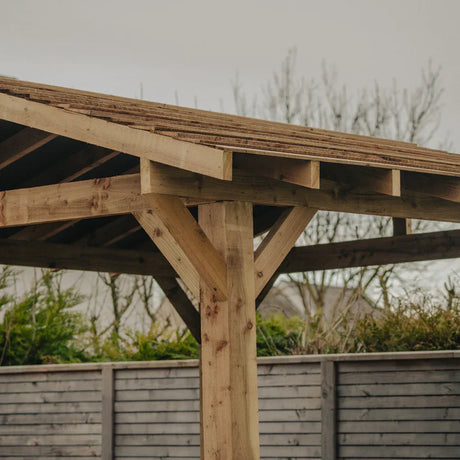

Featheredge boards are tapered, overlapping timber boards traditionally used for weatherboarding and cladding.

The overlap creates a natural watershed effect. Rain runs down the face of each board and off the edge, rather than driving straight through.

That’s why featheredge roof pergolas are popular in exposed UK gardens. They shed water effectively without relying on membranes or plastic panels.

Timber, Treatment and Longevity

Most quality pergola kits use pressure-treated timber to help resist rot and decay. Treatment penetrates the wood fibres, but cut ends should always be sealed after installation.

Over time, the timber will weather to a silvery tone unless stained or painted.

A simple maintenance routine helps extend lifespan:

• Recoat with exterior wood stain or paint every few years

• Keep debris off the roof surface

• Check fixings annually


Installation and Base Preparation

A wooden pergola with roof needs a solid base. That could be a concrete slab, patio, or structurally sound decking.

Posts are usually bolted down using post anchors or ground fixings to prevent movement in strong wind.

Most pergola kits are designed for DIY assembly with basic tools, though larger structures may need two or three people to lift beams safely.

Planning Permission in the UK

In many cases, a garden pergola falls under permitted development. General rules often include:

• Maximum height of 2.5m if within 2m of a boundary

• Up to 4m for a dual pitched roof (in other positions)

• Structures must not cover more than 50% of the garden area


Rules vary, especially in conservation areas or for listed buildings, so it’s always worth checking locally before installation.

Featheredge vs Other Roof Types

Compared with polycarbonate, a featheredge roof offers more privacy and a more traditional finish. Compared with louvred pergolas, it’s fixed rather than adjustable, but far simpler mechanically.

Against felt shingle roofs, it delivers a cleaner timber look without layered roofing sheets.

If you want a pergola kit that feels substantial, blends with fencing or timber cladding, and stands up to British weather, a featheredge roof pergola is a practical and attractive choice.
